ASI-BI-120A-00A

  • Category: Production Burn-in System
  • View and Download: Specification

Key Features

  • 120 ports [3/24/48 port models have the same features]
    • Default: SFF8639 with customized UART interconnect backplane with 2.5” SSD/HDD form factor. Base system allows for inter changeable loaders (can mix and match)
    • Optional: PCIe-edge card form factor front loading adapter available
    • Optional: M.2 card form factor front loading adapter available
    • Optional: other customized form factor front loading adapter can be supplied
  • Windows GUI Host Control Software
  • Customizable Host GUI and UART data protocol (OPT)
  • Host/DUT control scripting language support
  • PCIe card slot upgradeable (OPT) Configuration test software

Product Info.

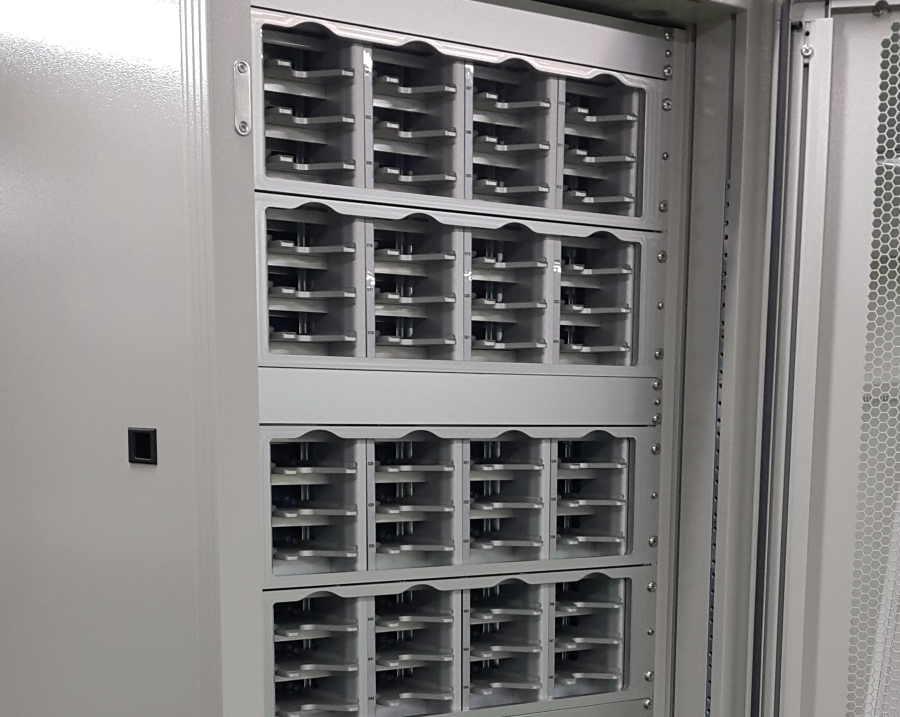

120 PORT UART TEST SYSTEM FOR SFF8639 NVME SOLID STATE DRIVES. CUSTOMIZED UART CONNECTIVITY.

OPTIONAL ADAPTERS (SOLD SEPARATELY) CAN BE USED TO TEST PCIE CARDS AND M.2 FORM FACTORS. PRE-INSTALLED WITH WINDOWS GUI HOST CONTROL SOFTWARE. USED IN PRODUCTION ENVIRONMENT.
