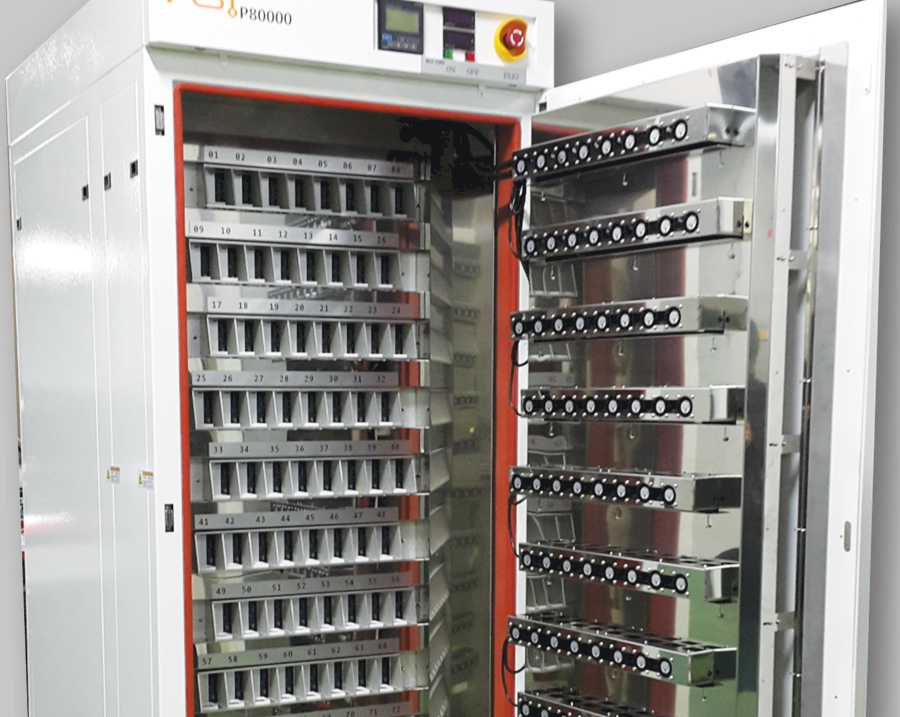

P80000 - PCIe/NVMe Test Chamber

  • Category: Environmental Test System
  • View and Download: Specification

Key Features

  • P80000: 80 port (optional dual port available)
  • PCIe-Gen3 4 lanes per port (gen3 2 lanes for dual port tester)
  • Support Gen1, Gen2, Gen3 auto select or manual select
  • Exchangeable loader adapter technology
    • [default] 2.5” SFF8639 (HDD/SSD form factor) adapter
    • [optional] PCIe-edge card adapter
    • [optional] M.2 card adapter
  • PMU (Power Management Unit) – programmable via USB or Ethernet
    • Drive insertion detection circuitry
    • Power on/off control
    • LED control
  • WEB based GUI control SW
  • Customized UART connectivity
  • Temperature control up to 70C

Product Info.

80 PORT TEST SYSTEM FOR SFF8639 NVME SOLID STATE DRIVES. THIS TEST SYSTEM SUPPORTS PCIE GEN3.0x4 LANE (BACKWARD COMPATIBLE WITH GEN 1 AND GEN2). INCLUDED IN THE TEST SYSTEM IS THE INTEGRATED PMU (POWER MANAGEMENT UNIT) THAT IS PROGRAMMABLE VIA USB OR ETHERNET. OPTIONAL ADAPTERS (SOLD SEPARATELY) CAN BE USED TO TEST PCIE CARDS AND M.2 FORM FACTORS.

OPTIONS INCLUDE DUAL PORT AND THERMAL UPTO 70 DEG C. P80000 IS SOLD AS HARDWARE ONLY, BUT BASIC PMU AND NVME TEST TOOL SOFTWARE IS AVAILABLE UPON REQUEST. PRE-INSTALLED WITH WINDOWS GUI HOST CONTROL SOFTWARE. USED IN PRODUCTION ENVIRONMENT.
