P8100 - PCIe/NVMe Tester

Key Features

  • P8100: 8 port single port support with PCIe card loader kit
  • P8100-D: 8 dual port support with PCIe card loader kit
  • PCIe-Gen3 4 lane per port (gen3 2lanes for dual port tester)
  • Support Gen1, Gen2, Gen3 auto select or manual select
  • Exchangeable loader adapter technology
  • Loader Configurations available
    • [default] 2.5” SFF8639 (HDD/SSD form factor) adapter
    • [optional] PCIe-edge card adapter
    • [optional] M.2 card adapter
  • PMU (Power Management Unit) – programmable via USB or Ethernet
    • Drive insertion detection circuitry
    • Power on/off control
    • LED control
  • Basic PMU and NVMe test tool available upon request

Product Info.

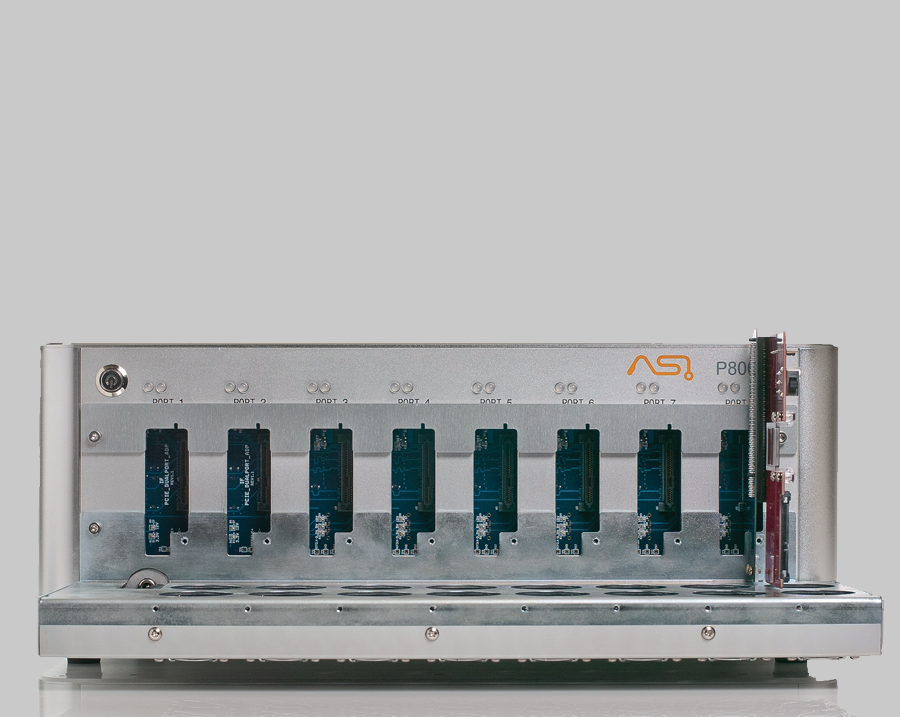

8 PORT TEST SYSTEM FOR SFF8639 NVME SOLID STATE DRIVES. THIS TEST SYSTEM SUPPORTS PCIE GEN3.0 X 4 LANE (BACKWARD COMPATIBLE WITH GEN 1 AND GEN2). INCLUDED IN THE TEST SYSTEM IS THE INTEGRATED PMU (POWER MANAGEMENT UNIT) THAT IS PROGRAMMABLE VIA USB OR ETHERNET. THIS ALLOWS FOR SEPARATE POWER ON/OFF CONTROL AS WELL AS LED CONTROL.

OPTIONAL ADAPTERS (SOLD SEPARATELY) CAN BE USED TO TEST PCIE CARDS AND M.2 FORM FACTORS. P8000 IS SOLD AS HARDWARE ONLY, BUT BASIC PMU AND NVME TEST TOOL SOFTWARE IS AVAILABLE UPON REQUEST.
